Optical Fiber And Co2 Laser Directly Inserted Into Computer

Directly inserted into computer Laser Control Card control optical fiber laser and CO2 laser

Summarization

LMC-PCIE especially for pulsed fiber laser marking machine,connect with the PC via PCIE connector.

Mainfeatures:

use DB25 socket output control signals, CO2 / YAG laser and FIBER laser control signals.

l galvanometer control signals to digital signals, can be directly connected to the general international digital galvanometer.

With the computer motherboard USB through a 4 p line connected to the PCI - E card CON4 ports.

Description:

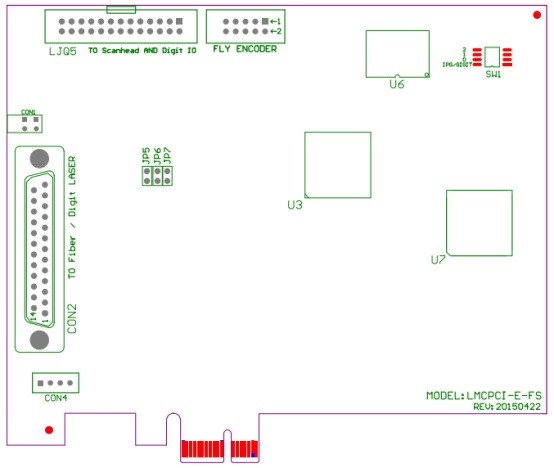

PCI - E card galvanometer signal is by the board on the LJQ5 (26 pin black plug), by a row of 26 core line connect the galvanometer signal to a DB15 (CON1) jack. DB15 jack (CON1) is installed above the extension block slice, then you need to block slice is fixed on the chassis of computer.

Galvanometer control signals to digital signals, can be directly connected to the digital galvanometer. Due to the digital digital signal transmission protocol used in the galvanometer is not exactly the same, so need to confirm the digital galvanometer which transport protocol. Our company also provides digital analog adapter plate, can also be converted into analog signal through the transfer board output connected to simulate the galvanometer.

Competitive Advantage:

Good quality ,work stable ,famous software EZCAD.
